Pneumatic Tube System

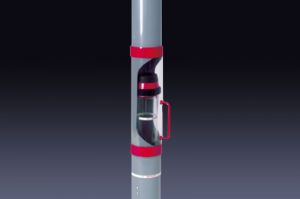

Slide Station

This station is basically used in the applications of Cash-Handling. As initial- or end station, tube approaching from top.

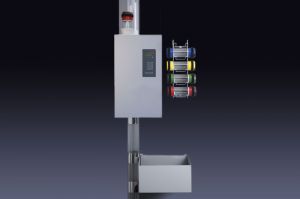

Trend-Station

Arrival from top or below. The Trend-station transports a stored carrier fully automatic to the desired destination. Carriers arrive gently on a cushion of air and are deposited in a sound proofed receptacle.

TITAN-Station

Microprocessor controlled pneumatic tube system, universal as through- or endstation. Arrival from top or below. Comfortable storing of a carrier in the send-opening in the front cover.

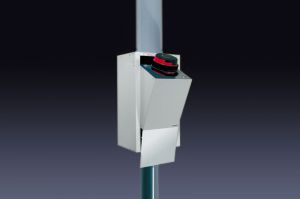

KSA-Station

The station is opened and closed automatically. The carrier is not removed from the station for loading and unloading. The carrier is transported automatically to its destination.

EWS-Station

This station sends a stored carrier automatically to the desired destination. Carriers arrive gently on an air cushion and are deposited in a sound proofed receptacle.

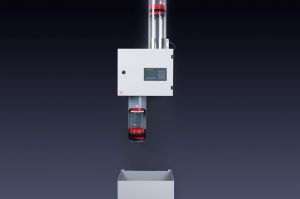

OES-Station

Compact sending & receiving station. Carrier will be sent automatically to the desired destination.

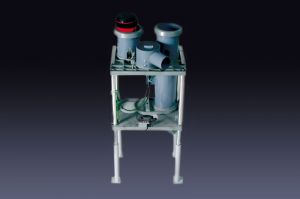

Desk-Station

The station either serves arrival from top or from below. Suitable for installation in desks, tables or further furniture. The Carrier can be inserted into a storage facility on top of the station.

Laboratory station

Used for receiving carriers with samples in an hospital. The carriers arrive gently.

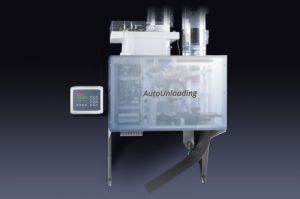

Auto-Unload-Station

Carrier will be gently received in the station, the carrier top will be opened automatically and the samples will be received on the lab-table. Then the carrier will be returned automatically back to its home destination via RFID.

Carriers

The Aerocom carrier is a durable, precision engineered transportation receptacle. For over 20 years, the proven design of ist sturdy swivel cap has been a standard for Aerocom. It is easy to handle, reliable and there's fit for every application.

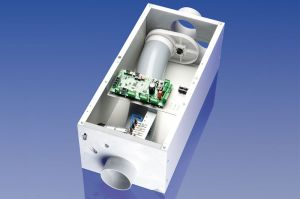

Diverter

Diverters act as a switching station that allows a carrier to travel to its destination in the most direct path set up by the diverters. Through this switching process, Aerocom has the ability to create flexible multi-station pneumatic tube systems that make it possible for carriers to be sent from any one station to any other.

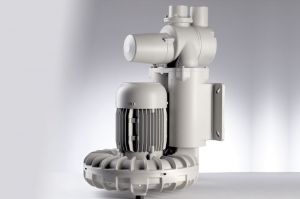

Blower

Aerocom's pneumatic tube systems utilize blowers that produce both presure and vacuum. Pressure vs. vacuum is what determines the direction the carrier will travel. The volume of air being moved provides the drive that pushes, or pulls the carrier at speeds of six to eight meters per second.

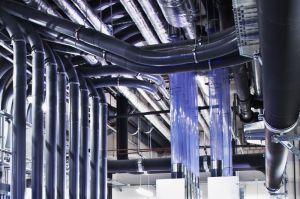

Dispatch Tubes

The pneumatic dispatch tube is a PVC-Tube with very tight production tolerance in regards to the measurement and surface. The tube is joined with glue sleeves or steel sleeves. PVC tubing is the prefered material in approx.

Linear Coupler

The connection between different zones can be managed by diverters or by an Linear-Coupler-System. All dispatches are co-ordinated by the AC 3000 central control unit.

Diverter Transfer

The connection between different zones of a pneumatic tube system can be managed by diverters. All dispatches between the individual zones are coordinated by the central control unit.
